Bottle Cap Liner Information
The Cork disc
Shaved or Solid Cork was a inexpensive natural product that was first used as a liner to seal the bottle.
These made a fairly good seal, but there was an occasional leaker with this natural product.
Solid cork liners were used until approximately 1915.
Cork particles or cork waste material originally thrown out became a new resource when developed into cork rods and cut into disks to replace solid cork liners. These were used until the late 1960's
Spot crowns are regular crown corks to which a "spot" or disc of liner material is attached to the cork liner. This was added to prohibit the beverage from making contact with the cork liner. Dozens of various materials were used for spots, such as paper, aluminum, tin, foil, rubber and vinylite depending on the type of beverage that came into contact with the spot. Aluminum spots were generally used for beer and others for soda, ginger ale or sparkling water. The use of cork liners was phased out in the late 1960's.
Various types of plastic or vinyl liners have been used to replace the cork liners and many are still in use today.
Corrugations or Flutes
Corrugations or Flutes are the points formed around the skirt of the crown. Different numbers of corrugations were used by various companies and were later standardized at 21. Recently some manufacturers have once again changed this number for reasons unknown.
|21 Flutes||29 Flutes|

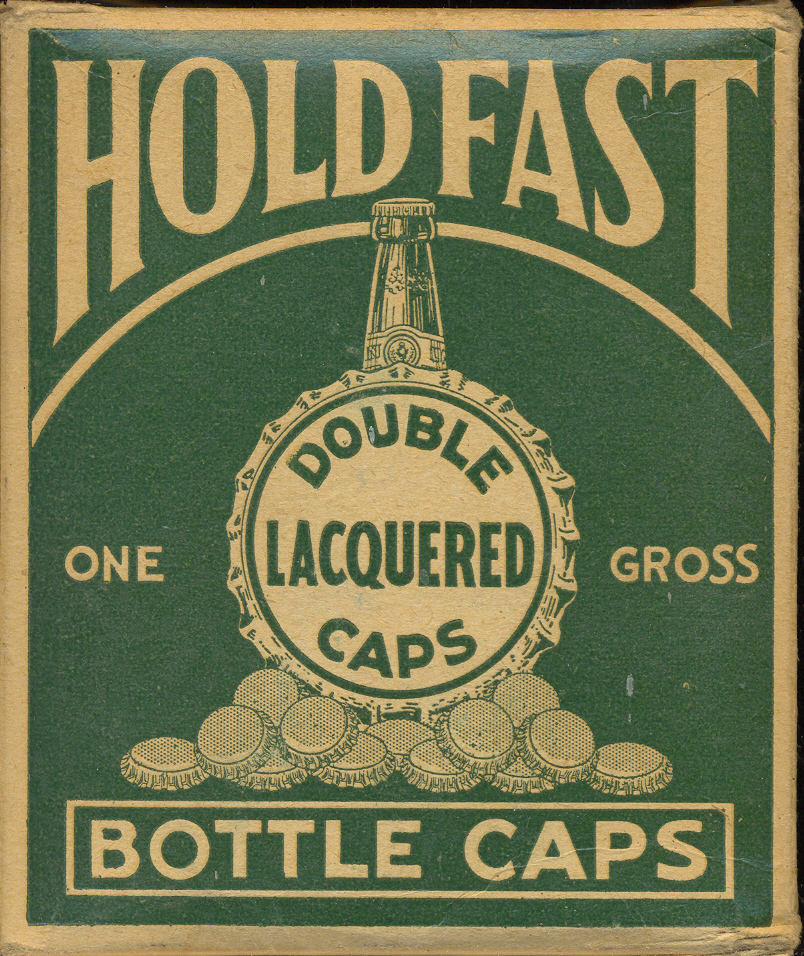

Home Use Boxes
I also collect home use boxes like some of those shown below and currently have around 100 different ones in my collection. Home use boxes simply means bottle caps sold to the general public and were usually found in grocery stores or hardware stores along with bottle cappers. These were used for various bottled items such as homemade beer or soda, ketchup, fruit juice, water etc........... Want to see more? Go to "My Collection Home Use Boxes"
Cases & Cartons
Cases or Cartons were used for shipment of crowns which came in various sizes.
50 Gross Wooden Cases......19" x 12" x 11" deep
100 Gross Wooden Cases....25" x 16" x 13" deep
200 Gross Wooden Cases....25" x 20 1/2" x 20 1/2" deep
50 Gross Cartons...................16 1/8" x 11 1/2" x 9 1/2" deep
100 Gross Leverpak Drum
200 Gross Leverpak Drum
Today's standard case size is 70 Gross...21" x 12" x 12" deep
1 gross = quantity of 144 Crowns
Thanks for looking!
